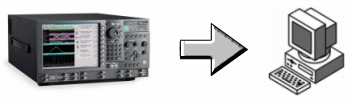

version 3.x for the SIA-4000
Freely licensed for install on
any PC. This software
will allow you or your colleagues to open and view
data files saved from GigaView on the SIA-4000.
Note: this software will not control an SIA-4000.
Download
GigaView Reader 3.0.0 (28M)
version 2.x for the SIA-4000
Freely licensed for install on
any PC. This software
will allow you or your colleagues to open and view
data files saved from GigaView on the SIA-4000.
Note: this software will not control an SIA-4000.
Download
GigaView Reader 2.0.0 (24M)
version 1.5.x
Freely licensed for install on
any PC. This software
will allow you or your colleagues to open and view
data files saved from GigaView. View saved data files
from SIA-3000, 3100, 3300, 3400 and 3600.
Note: this software will not control an SIA-3000.
Download
GigaView Reader 1.5.x (22M)
|
|
| |
|
Installation
Directions  Navigating
GigaView
|
| |
| |
|
This utility runs on a host PC
connected to an SIA-3000 by GPIB. It allows any file
to be transferred from the host PC to the SIA or from
the SIA to the host PC. This utility is useful when
Superdisk, USB, or network media are unavailable for
retrieval of bitmaps or stored results files.
|
| |
|
 |
Download
the GPIB File Transfer Utility(241Kb) |
| |
|
These drivers will only work
with LabVIEW 6.1 and later. Drivers and example files
are included in this setup executable. These drivers
provide the functionality of the Wavecrest GigaView
tools in the LabVIEW environment. Choose the appropriate
version of driver for your version of GigaView: GigaView
1.3.1 uses LabVIEW Driver 1.3.0; GigaView 1.5.2 uses
LabVIEW Driver 1.5.0. See the installation directions.
For information on upgrading
your SIA from a previous version, please
contact us.
|
| |
|
|
Download
LabVIEW Drivers for GigaView 1.5.0 (15Mb)
Installation Directions
LabVIEW
Drivers Manual
GPIB
Manual |
| |
|
These drivers will only work
with LabVIEW 8.5 and later. Drivers and example files
are included in this setup executable. These drivers
provide the functionality of the GigaView
tools in the LabVIEW environment. Choose the appropriate
version of driver for your version of GigaView: GigaView
3.0 uses LabVIEW Driver 2.0 See the installation directions.
For information on upgrading
your SIA from a previous version, please contact us.
|
|
Download
LabVIEW Drivers for GigaView 3.0 (16Mb)
Installation Directions
LabVIEW
Drivers Manual(3.8Mb)
GPIB
Manual |
| |
|

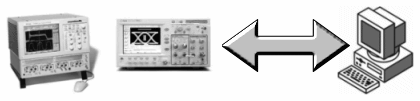

Requires License. Demo Licence
codes are available. This software will allow you to
perform RJ/DJ jitter separation on the Agilent 86100B
or Tek TDS8000 or CSA8000 Equivalent-time Sampling Oscilloscopes.
Featuring Wavecrest's patented TailFit!
Note: This software will run directly on a Tek CSA or
TDS8000. Agilent 86100 requires a separate PC and National
Instruments GPIB connection.
|
| |
|
 |
Download
GigaView SA (3.79Mb)
Users
Manual |
