SIA-4000D

Click here for more product details

Complete analysis of random, deterministic and total jitter, modulation, amplitude, Rise and fall times, amplitude, frequency, and pulse widths on clock signals up to 15GHz. Perform eye mask tests, jitter analysis and diagnostics on data signals up to 12.5Gb/s. Perfect for PCI express Gen 2, emerging standards at 6Gb/s, and 12.5Gb/s characterization. Add more channels to measure databus or memory applications with bitclock and multiple data lines.

Analyze random, deterministic and total jitter, modulation, and PLL characteristics on clock signals up to 15GHz. Measure Rise/fall times, amplitude, frequency, and pulse widths in one easy to use tool. Add more channels to measure clock fan-out skew or input/output jitter.

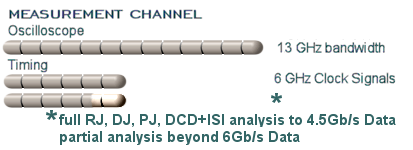

Complete analysis of random, deterministic and total jitter, modulation, amplitude, Rise and fall times, amplitude, frequency, and pulse widths on clock signals up to 6GHz. Perform eye mask tests, jitter analysis and complete diagnostics on repeating or random data signals up to 4.5Gb/s. Limited diagnostics beyond 6Gb/s for crosstalk or Periodic Jitter spectrum characterization. Perfect for PCI express, 1x, 2x, 4x Fibre Channel, XAUI, Infiniband or backplane analysis. Add more channels to measure databus or memory applications with bitclock and multiple data lines.

Analyze random, deterministic and total jitter, modulation, and PLL characteristics on clock signals up to 6GHz. Measure Rise/fall times, amplitude, frequency, and pulse widths in one easy to use tool. Add more channels to measure clock fan-out skew or input/output jitter.

Complete analysis of random, deterministic and total jitter, modulation, amplitude, Rise and fall times, amplitude, frequency, and pulse widths on clock or PLL signals up to 3.5GHz. Characterize PLL Transfer Function. Perform serial data eye mask tests, jitter analysis and complete diagnostics on repeating or random data signals up to 3.5Gb/s. Perfect for SATAI, SATAII, PCI Express, 1x and 2x Fibre Channel and XAUI. Measure signals with SSC or characterize SSC itself. Add more channels to measure databus or memory applications with bitclock and multiple data lines.

SIA-3400C

Analyze random, deterministic and total jitter, modulation on clock signals up to 3.5GHz. Tools characterize PLL Transfer function and Bode Plot. Measure Rise/fall times, amplitude, frequency, and pulse widths in one easy to use tool. Add more channels to measure clock fan-out skew or input/output jitter.
